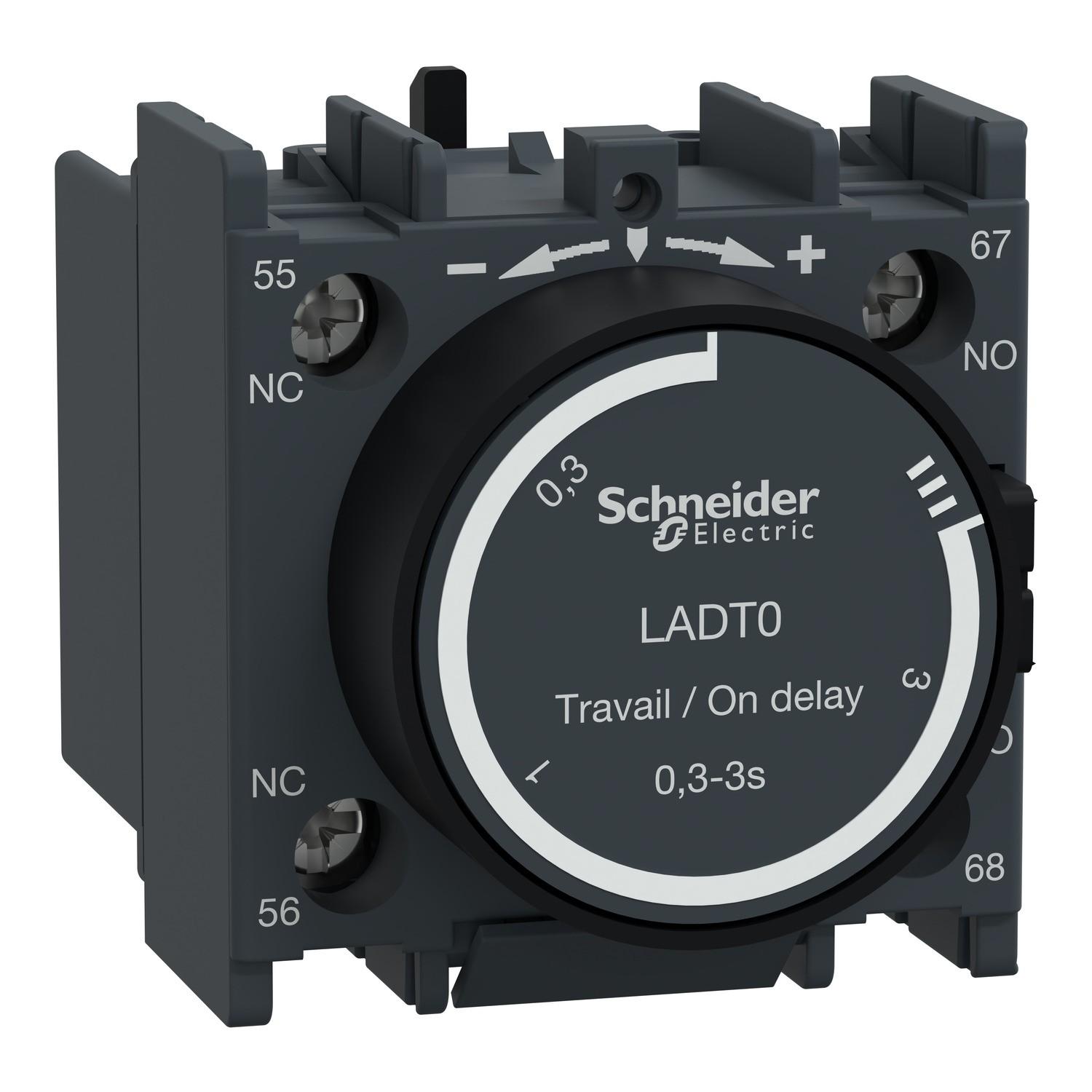

LADT0

The Schneider Electric TeSys LADT0 time delay auxiliary contact block is used to add short on-delay timing to TeSys D contactors. It comes with 1 normally open and 1 normally closed contact and offers an adjustable delay range of 0.3 to 3 seconds. With front mounting and screw clamp terminals, this unit allows easy installation and precise timing control in motor control and automation panels.

Key Features

• 1 NO + 1 NC contact configuration
• On-delay timing range: 0.3 to 3 seconds
• Front mounting for TeSys D contactors
• Screw clamp terminals for secure wiring
